Power Distribution & Raceway
Industrial raceway and power distribution installations, including rigid conduit, cable tray, equipment supports, grounding, disconnects, feeders and branch circuits for process equipment and facility systems.
GRID POWERSOLUTIONSTurn-key industrial field services 24/7
CALIFORNIA C-10 · LICENSE #1113141
Power to process.
One field partner.
Turn-key industrial electrical construction, controls wiring and instrumentation—from facility power to the last field termination.
Discuss your project →24/7 industrial emergency response · 1-888-GPS-65131-888-477-6513
INDUSTRIAL ELECTRICALMOTOR CONTROLSINSTRUMENTATIONFIELD WIRINGCOMMISSIONING SUPPORT
INDUSTRIAL EMERGENCY?
Field response available 24 hours a day.
00 TURN-KEY FIELD SCOPE
We build the physical system that lets power, controls and process work together.
FROM FACILITY POWER TO THE PLC TERMINATION POINT.
WHAT TURN-KEY MEANS
One contractor.
Every field connection.
Motors, Drives & Process Equipment
Motor feeders and terminations, VFDs, local control stations, disconnects, interlocks and electrical connections for pumps, mixers, compressors, actuated valves and other process equipment.
Instrumentation & Control Wiring
Installation and termination of flow, pressure, level and temperature instruments, including control cable, feedback circuits and shielded or unshielded twisted-pair wiring.
PLC I/O, Testing & Startup Support
Field terminations at terminal blocks, control panels and PLC I/O, along with point-to-point testing, loop checks, device verification and on-site support for controls programmers during startup.
THE HANDOFF: Grid Power Solutions delivers and tests the field infrastructure. PLC programming remains with the client’s controls integrator; during commissioning, we serve as their on-site hands, eyes and test support.
01
Distribution · Raceway · Protection
Power in.
Industrial electrical construction from the service and distribution equipment through rigid conduit, feeders, disconnects, transformers and the branch circuits serving each load.
01.01 / Medium-voltage field service
01.02 / Industrial Switchboard Energy Study in Progress
01.03 / Field terminations and service cubicleCHAPTER 1 / 4
02
MCC · VFD · Motor systems
Motion controlled.
Power and control wiring for pumps, blowers, compressors and process equipment—including motor feeders, local controls, feedbacks, VFDs and protection.
02.01 / Industrial Switchboard Installation
02.02 / Local motor controls and disconnectsCHAPTER 2 / 4
03
Instrumentation · Pneumatics · Controls wiring
Signals made useful.
Complete field installation and termination of instrumentation, control and signal wiring, thermocouple circuits, pneumatic tubing and instrument-air connections—from process equipment and field devices to control panels and PLC I/O.
03.01 / Valve Actuator Wiring and Feedbacks
03.02 / Control panel and remote I/O
03.03 / Process temperature instrumentation
03.04 / Industrial remote I/O platform
03.05 / Industrial controls panel
03.06 / PLC control system integration
03.07 / Automation and Controls CabinetCHAPTER 3 / 4
04
Testing · Startup · Commissioning support
The whole process.
Point-to-point testing, loop checks, field corrections and hands-on support for the controls programmer during startup—so the complete installation performs as one system.
04.01 / Process equipment ready for integration
04.02 / Renewable gas compression system

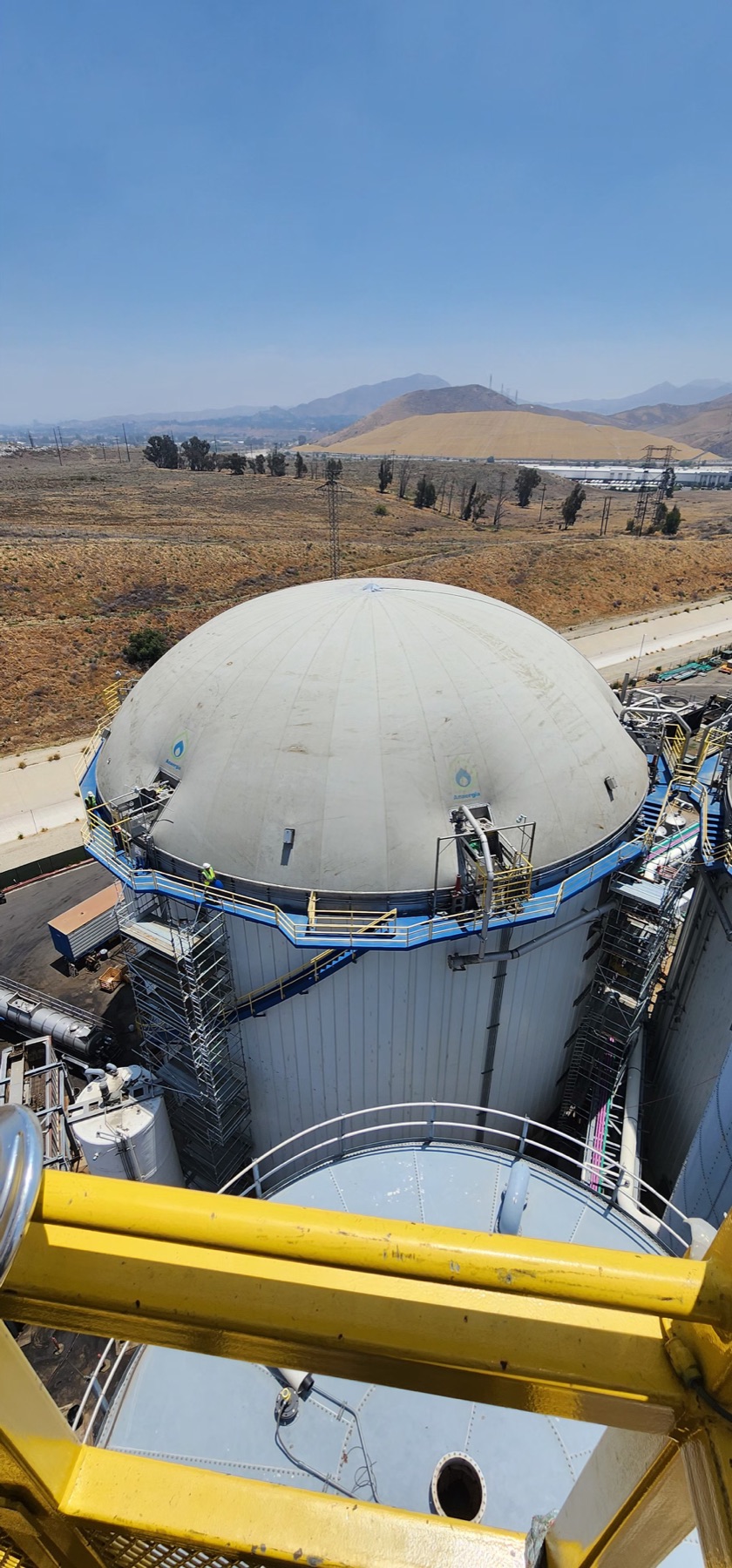

04.03 / Anaerobic digestion infrastructure
04.04 / Water process equipment
04.05 / Facility startup work
04.06 / Packaged industrial controls
04.07 / Mechanical Services Available
04.08 / Technician commissioning a process skid
04.09 / Heavy Process Equipment InstallationCHAPTER 4 / 4
COMPLETE CAPABILITY MAP
Built through
to the last signal.
01Industrial Electrical Construction02Rigid Conduit & Raceway03480V / 240V / 120V Systems04Switchgear & Transformers05MCCs & Motor Feeders06VFD Installation & Startup07Instrumentation & Field Devices08Control & Feedback Wiring09Pneumatic Valve Tubing10Compressed-Air Lines11PLC / I-O Terminations12Commissioning Support
05 SELECTED EXPERIENCE
Some of our customers
and project sites.
Organizations, customer teams and facilities our field crew has supported through industrial electrical, controls or instrumentation work.
ANAERGIA
Renewable resource recovery
RIALTO BIOENERGY FACILITY
A Sevana Bioenergy company
KAISER PERMANENTE
Healthcare facilities
PASADENA COURTHOUSE
Public facility
SOCIAL SECURITY ADMINISTRATION
Pasadena facility
VVWRA
Victor Valley Wastewater Reclamation Authority
AMERICAN TURNKEY FABRICATORS
Industrial fabrication
KNOCK OUT TREATMENT
Industrial water treatment
P-TEC
DAF systems
DR. SQUATCH
Manufacturing facility
06 SERVICE COVERAGE
Based in Loma Linda.
Built to mobilize.
Our primary response area covers the Inland Empire, Greater Los Angeles, Orange County and the High Desert. We take on industrial projects throughout California and consider select out-of-state work by arrangement.
LOCAL RESPONSELoma Linda · Redlands · Rialto · San BernardinoREGIONAL COVERAGEInland Empire · Los Angeles · Orange County · High DesertPROJECT MOBILIZATIONStatewide California · Select projects beyond California
EQUIPMENT EXPERIENCE
Familiar platforms.
Field-proven execution.
Experience installing, wiring, testing or integrating industrial equipment and instrumentation from:Allen-BradleySiemensLimitorqueEndress+HauserHachUE / United ElectricBadger MeterBörgerWEGNORDLSM
Brand names describe field experience only. Grid Power Solutions is an independent electrical contractor and is not presented as an authorized distributor.SAFETY & SITE READINESS
Prepared for industrial operating environments.
Project-specific orientationArc-flash awarenessFirst-aid readinessSite-required OSHA practices
07 FIELD ARCHIVE
More proof.
More range.
Nine additional details selected for technical range—not filler.
YOUR NEXT SYSTEM
Let’s solve
the hard part.
Loma Linda, California · Serving industrial clients statewidecontactus@gridpowersolut.com
